What Is Weeping Tile?

What Is Weeping Tile?

If you need weeping tile installation in Toronto, Dryshield is here to help. Weeping tile is the drainage pipe system installed around the base of your home’s foundation to collect and redirect groundwater before it can enter your basement. In fact, the name comes from the old clay tile pipes used in construction before the 1980s — today, modern weeping tile systems use perforated PVC pipe wrapped in filter fabric, which is far more durable and resistant to clogging.

Notably, every home built in Toronto has some form of weeping tile, but if your home was built before the 1990s, there’s a strong chance your old weeping tile system has deteriorated.

Over time, clay tiles crack, tree roots invade the joints, and decades of soil sediment clog the pipe — all of which cause the system to fail and water to build up against your foundation.

As a result, when weeping tile fails, the result is basement leaks, mould growth, foundation damage, and possibly thousands of dollars in repairs. A weeping tile swap or new weeping tile installation is one of the most effective forms of basement waterproofing offered — it addresses the root cause of most water problems rather than just managing symptoms.

Specifically, depending on your situation, weeping tile installation can be done on the exterior of the foundation (the classic approach) or on the interior as a edge drain, often paired with a sump pump to evacuate the collected water.

Interior Basement

Below, weeping tile drainage system at the foundation footing

Why Weeping Tile Fails — And When to Replace It

Why Weeping Tile Fails — And When to Replace It

Your weeping tile doesn’t fail overnight. As a result, it breaks down over decades until it can no longer handle the water load around your foundation.

Common Causes of Failure

First, Clay Tile Deterioration

Homes built before 1980 used clay weeping tile — short sections of unglazed clay pipe laid end-to-end. As a result, over 40+ years, clay cracks, shifts, and collapses under soil pressure.

At that point, the system needs full weeping tile swap.

Also, Root Infiltration

Tree and shrub roots grow directly into weeping tile pipe joints. In given, this is mainly common in Toronto areas with mature trees and can completely block drainage within a few years.

Moreover, Sediment & Iron Ochre Clogging

Toronto’s clay-heavy soil produces fine sediment that fills weeping tile over decades. What’s more, in some areas, iron ochre — an orange germ sludge — forms inside the pipe and blocks water flow. A clogged weeping tile creates the same result as having no drainage at all.

Finally, Improper Original Installation

Many Toronto homes from the 1950s–70s had weeping tile installed without proper gravel bedding or filter fabric, causing the pipe to clog much faster.

Weeping Tile Failure Risk by Home Age

Weeping Tile Failure Risk by Home Age

Ultimately, the age of your home is the single biggest sign of weeping tile condition:

Pre-1950s

98% — Almost Certain Failure

1950s–1970s

90% — Very High Risk

1980s

70% — High Risk

1990s

40% — Moderate

2000s+

15%

If your home was built before 1990, we strongly recommend a weeping tile check-up as part of any basement waterproofing assessment.

Signs Your Weeping Tile Needs Replacement

Signs Your Weeping Tile Needs Replacement

Above all, don’t wait for a basement flood to find out your weeping tile has failed. Indeed, delaying can much increase your basement waterproofing costs.

Water Seeping at the Floor-Wall Joint

Essentially, water appearing where the basement floor meets the foundation wall is the most common sign of failed weeping tile.

Likewise, Sump Pump Running Non-Stop

If your sump pump runs non-stop, it often means clogged weeping tile is dumping excessive water into the pit.

Similarly, Persistent Mould or Musty Smell

Chronic dampness from failed drainage feeds mould colonies behind walls and under flooring. As a result, new weeping tile eliminates the water source.

In addition, Foundation Cracks With Water Staining

Similarly, cracks with visible water staining or efflorescence mean water has been penetrating for an extended period. As a result, new weeping tile relieves the pressure.

For instance, Basement Flooding After Rain

Above all, the clearest sign your drainage has failed. Moreover, Toronto homeowners may qualify for the basement flooding protection subsidy.

Likewise, Damp or Bubbling Basement Floor

Essentially, moisture pushing up through the concrete slab indicates water pressure from below — your weeping tile is no longer moving groundwater.

Our Weeping Tile Installation & Replacement Process

Our Weeping Tile Installation & Replacement Process

Dryshield’s weeping tile installation process has been refined over 25+ years and 15,000+ projects across the GTA. Moreover, we back every job with our lifetime passable warranty.

  1. Free In-Home Assessment — First, we inspect your basement, check for weeping tile failure, and provide a detailed written quote at no cost.
  2. Interior Demolition — Next, a narrow strip of concrete (12–18″) comes out along the basement edge using precision concrete saws.
  3. Excavation to Footing — Then, we dig down to the foundation footing, exposing where old weeping tile sits.
  4. Old System Removal — After that, failed clay tile, collapsed pipe, or clogged drainage is fully removed.
  5. New PVC Weeping Tile — Then, modern 4″ perforated PVC pipe wrapped in filter filter fabric is laid in washed gravel, sloped toward the sump pit.
  6. Sump Pump Connection —

    Sump Pump and Membrane

    In addition, the weeping tile connects to a sump pit with primary pump and battery backup. If you need a new sump pump installation, we include it.

  7. Waterproofing Membrane — What’s more, a dimpled drainage membrane goes onto the foundation wall, directing wall seepage into the drain system.
  8. Concrete Restoration & Testing — Finally, our team restores the floor with new concrete, and the entire system is water-tested before we leave.

New perforated PVC weeping tile in gravel bed at the footing

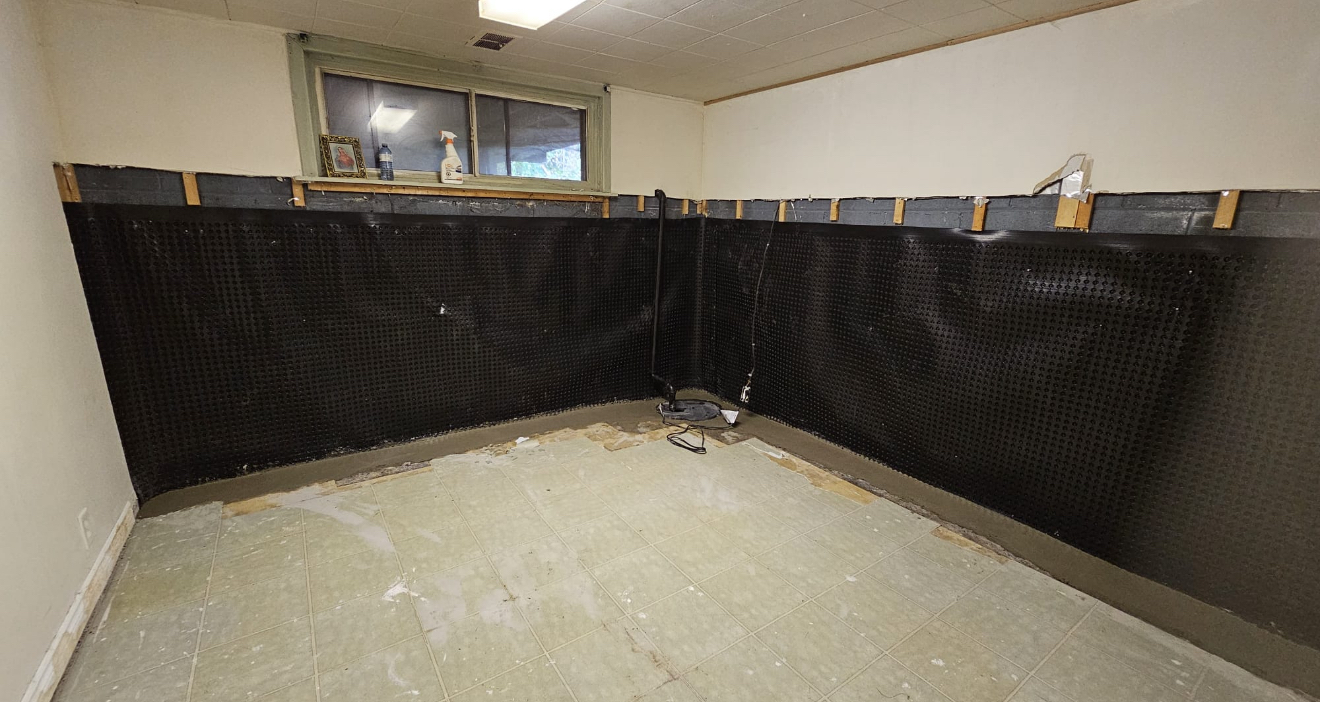

Interior waterproofing installation in the beaches, Toronto.

Sump pump system connected to the new weeping tile drainage

Weeping Tile Cost in Toronto (2026)

Weeping Tile Cost in Toronto (2026)

The cost of weeping tile swap in Toronto depends on interior vs exterior work, basement size, soil conditions, and whether existing systems need removal. Below, here are typical 2026 price ranges:

ServiceCost RangeIncludes
Interior Weeping Tile (one wall)$2,500 – $5,000Concrete removal, pipe, gravel, repair
Interior Weeping Tile (full edge)$5,000 – $18,000Full edge drain + sump pump + membrane
Exterior Weeping Tile Replacement (one wall)$5,000 – $10,000Excavation, old tile removal, new pipe, membrane, backfill
Exterior Weeping Tile Replacement (full edge)$10,000 – $30,000Full digging, waterproof membrane, new tile, landscaping repair
Weeping Tile + Sump Pump Combo$5,500 – $14,000Interior weeping tile, sump pit, pump, battery backup

For a complete breakdown, see our Basement Waterproofing Cost Guide. In addition, In addition, Also, Also, Toronto homeowners can also apply for the City of Toronto basement flooding protection subsidy (up to $3,400 back).

Get a Free Weeping Tile Inspection & Quote

Same-day estimates offered across Toronto for weeping tile installation, Mississauga, Brampton, Scarborough, North York, and the GTA.

Call 1-800-277-5411 for a free estimate. You can also learn about the Toronto Basement Flooding Protection Subsidy Program to help offset costs. info@dryshield.ca

Weeping Tile vs. French Drain: Which Do You Need?

Weeping Tile vs. French Drain: Which Do You Need?

Toronto homeowners often ask about the difference between weeping tile and a french drain. While both use perforated pipe to manage groundwater, they serve different purposes.

FeatureWeeping TileFrench Drain
Primary purposeFoundation drainage at footing levelRedirect surface & ground water
Typical locationExterior at footing (or interior retrofit)Interior edge or yard
Original materialClay tile (now PVC)Perforated PVC or corrugated
Best paired withExterior membrane, sump pumpSump pump, interior membrane

Many Toronto homes benefit from both — exterior weeping tile swap combined with an interior french drain provides the most complete basement waterproofing protection.

Complete Waterproofing Solutions That Include Weeping Tile

Complete Waterproofing Solutions That Include Weeping Tile

Weeping tile swap is most effective as part of a complete waterproofing system:

Exterior Waterproofing System

The gold standard: new weeping tile at the footing with an exterior waterproofing membrane, drainage board, and proper gravel backfill.

Interior Drainage System

New interior weeping tile paired with a sump pump, dimpled membrane, and interior waterproofing. Preferred when exterior digging isn’t feasible.

Crawl Space Drainage

Weeping tile around the crawl space edge combined with crawl space sealing — sealed vapour barrier, drainage matting, and dehumidification.

Weeping Tile Considerations for Toronto Homeowners

Weeping Tile Considerations for Toronto Homeowners

Clay Soil Dominance — Most of Toronto sits on glacial clay till that holds water rather than draining it. PVC pipe with filter filter fabric is essential in Toronto’s soil conditions.

Freeze-Thaw Cycles — Toronto’s winters cause repeated freeze-thaw cycles that can shift soil and damage old clay weeping tile. Modern PVC systems are flexible enough to handle this movement.

Combined Sewer Systems — Older Toronto areas have combined sewers where weeping tile was connected directly to the city sewer. During heavy rain, these back up. Disconnecting and moving to a sump pump is a critical upgrade.

Subsidy Programs — The City of Toronto Basement Flooding Protection Subsidy provides up to $3,400 for qualifying drainage upgrades. Also, Dryshield handles the application process.

Insurance Implications — Many Toronto insurance providers ask about basement waterproofing when writing policies. Documented weeping tile swap can reduce your premiums and ensure coverage for water damage claims.

What Our Customers Say

What Our Customers Say

Weeping Tile FAQ

Weeping Tile FAQ

How much does weeping tile swap cost in Toronto?

Typically, interior weeping tile swap usually costs $5,000–$12,000 for a full edge system including sump pump. Exterior ranges from $15,000–$30,000. Most Toronto homeowners pay $6,000–$10,000 for a complete interior system. See our cost guide for details.

How do I know if my weeping tile is clogged?

Specifically, common signs include: water seeping at the floor-wall joint, a sump pump that runs constantly, persistent dampness or mould, and flooding after heavy rain. A camera check-up through the sump pit cleanout can confirm the condition.

Can clogged weeping tile be cleaned instead of replaced?

In some cases, weeping tile can be flushed or hydrojetted. However, if the pipe is old clay that has cracked or collapsed, cleaning is only temporary. For older Toronto homes, full swap with modern PVC is usually the best long-term solution.

How long does weeping tile swap take?

Interior swap takes 2–4 days for most Toronto homes. Exterior swap can take 5–10 days depending on edge length, soil conditions, and landscaping.

What’s the difference between weeping tile and a french drain?

Weeping tile is the foundation drainage at the footing level. A french drain is usually an interior edge channel. Both use perforated pipe in gravel — the main difference is location and purpose. Many projects use both together.

Does the City of Toronto offer rebates for weeping tile swap?

Yes. The City of Toronto Basement Flooding Protection Subsidy Program reimburses homeowners up to $3,400 for qualifying drainage work including weeping tile swap and sump pump installation.

How long does new weeping tile last?

Modern PVC weeping tile with filter filter fabric and proper gravel bedding lasts 50+ years. Dryshield backs every installation with a lifetime passable warranty.

Do you replace weeping tile outside Toronto?

Yes. We service the entire GTA including Mississauga, Brampton, Oakville, Burlington, Markham, Richmond Hill, Vaughan, Scarborough, North York, Etobicoke, and surrounding areas. Call 1-800-277-5411 for a free assessment.

Fix Your Weeping Tile — Protect Your Basement for Life

Get a free, no-strings weeping tile check-up and swap quote from Toronto’s most trusted basement waterproofing contractor.
