Do I Need Perimeter Water Solutions? (2026 Homeowner Guide)

By Jason Carillo, Operations Manager · Updated May 2026 · 25+ Years of Experience

Dryshield’s 7-Layer Perimeter Waterproofing System

Dryshield’s exterior perimeter waterproofing uses a 7-layer assembly. Each layer plays a specific role — together they keep groundwater off the foundation and channel it safely to the perimeter drain.

1. Foundation Wall Preparation — Power-washed and parged to a sound surface so the waterproof membrane can bond properly.
2. Waterproof Membrane — A rubberized asphalt or polymer membrane bonded to the foundation wall. The primary water barrier.
3. Sheeting — A protective sheet placed over the waterproof membrane to shield it from backfill and stone damage during installation.
4. Dimple Board (Drainage Membrane) — A studded polyethylene sheet that creates an air gap and channels water down to the weeping tile.
5. Geotextile Filter Cloth — A permeable fabric wrapping the drainage stone and weeping tile to keep silt and soil out.
6. Drainage Stone — Clear 19mm crushed stone surrounding the weeping tile, providing a high-permeability path for groundwater.
7. Perforated Weeping Tile — 4-inch perforated drainage pipe at the base of the footing, sloped to discharge to the sump pit, daylight outlet, or storm connection.

Beyond the 7 layers: a complete perimeter water solution also includes a sump pit, submersible sump pump, and a backwater valve to handle discharge and prevent municipal sewer backups during heavy rain.

How a Perimeter Water Solution Works

Rain or melting snow soaks into the soil around your foundation. As soil saturates, it exerts hydrostatic pressure against the concrete. That pressure forces water through any pinhole or crack. A perimeter water solution interrupts this at three stages: the membrane blocks water at the wall, the dimple board diverts overflow down to the weeping tile, and the weeping tile carries water to the sump pit for discharge.

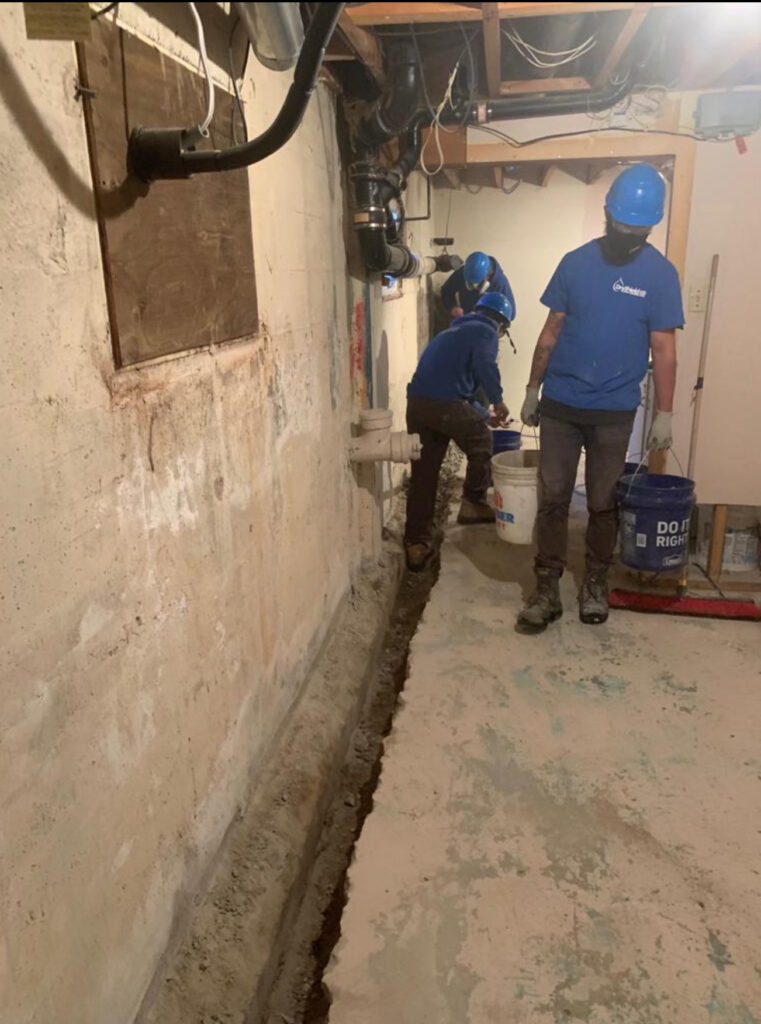

Exterior vs Interior Perimeter Water Solutions

There are two delivery methods for perimeter water solutions: exterior excavation waterproofing (stops water at the source, $100-$250/ft) and interior weeping tile (manages water once it enters, $90-$150/ft). The right choice depends on access, budget, and how aggressive the water entry is.

Read our complete Exterior vs Interior Perimeter Waterproofing comparison for a decision framework.

What a Perimeter Water Solution Costs in Ontario (2026)

Frequently Asked Questions

What is the difference between perimeter water solutions and basement waterproofing?

Perimeter water solutions are a specific subset of basement waterproofing focused on the foundation perimeter. Broader basement waterproofing also includes spot repairs, crack injection, and interior coatings. A complete perimeter solution is the most thorough form of basement waterproofing.

How long does a perimeter water solution last?

50+ years when installed correctly. Dryshield backs every installation with a lifetime transferable warranty that follows the home, not the owner.

Can I install a perimeter water solution myself?

Exterior perimeter waterproofing requires excavation 6–8 feet deep and is not safe for DIY. Interior weeping tile requires saw-cutting basement floor concrete. Both require professional installation to qualify for warranty and comply with Ontario Building Code Section 9.13.

Do perimeter water solutions stop foundation cracks?

They prevent new cracks by reducing hydrostatic pressure. Existing cracks should be repaired with polyurethane or epoxy injection at the same time for complete protection.

What is the lifetime transferable warranty?

Dryshield’s warranty covers the perimeter water solution against water entry for the lifetime of the home and transfers to new owners if the home is sold — a significant advantage at resale.

When should I install a perimeter water solution?

Before finishing a basement, before selling the home, or when you notice the first signs of moisture (efflorescence, musty smell, damp walls). Waiting until a major leak occurs costs more in repairs.

Are perimeter water solutions covered by home insurance?

Most home insurance policies do not cover preventative waterproofing because it is considered maintenance. Damage from a failed drainage system may be covered. Dryshield provides written documentation suitable for insurance and real estate disclosure purposes.

What rebates are available in Ontario?

The City of Toronto Basement Flooding Protection Subsidy offers up to $3,400. Region of Peel offers up to $4,750. Many other municipalities have similar programs. Dryshield handles subsidy paperwork as part of installation.
